Directional valves with lever control, 50L, mounted

> > 50l directional valves with lever control, mounted

It is possible to arrange and combine any 9 components. The four most common combinations are displayed on this page for you. If you have any questions towards individual solutions or combinations do not hesitate to contact us(+49 (0) 5351 - 523 520)

Product Picture Double-acting, one section

Double-acting, one section

Contents:

- Input element with pressure relief valve
- Flange valve with hand lever, double-acting with spring return
- Output element

Parameters:

Max. flow: 50 l/min
Max. pressure: 300 bar
Max. return pressure: 35 bar
Temperature range: -30 °C to + 90 °C
Hinweis
zoom circuit diagram TS-1DFFzoom
Technical Data:
Qty. Presetting
Pressure relief valve
Item No. Price
bar TS-1DFF 151,33 €
Product Picture Single-acting, one section

Single-acting, one section

Contents:

- Input element with pressure relief valve
- Flange valve with hand lever, double-acting with spring return
- Output element

Parameters:

Max. flow: 50 l/min
Max. pressure: 300 bar
Max. return pressure: 35 bar
Temperature range: -30 °C to + 90 °C
Hinweis
zoom circuit diagram TS-1EFFzoom
Technical Data:
Qty. Presetting
Pressure relief valve
Item No. Price
bar TS-1EFF 151,33 €
Product Picture Double-acting, two sections

Double-acting, two sections

Contents:

- Input element with pressure relief valve
- Flange valve with hand lever, double-acting with spring return
- Output element

Parameters:

Max. flow: 50 l/min
Max. pressure: 300 bar
Max. return pressure: 35 bar
Temperature range: -30 °C to + 90 °C
Hinweis

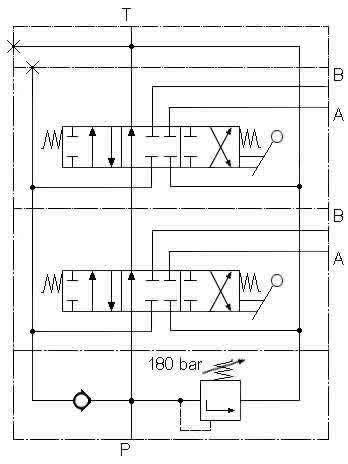

zoom circuit diagram TS-2DFFzoom
Technical Data:
Qty. Presetting
Pressure relief valve
Item No. Price
bar TS-2DFF 231,57 €
Product Picture Combined ,two sections

Combined, two sections

Contents:

- Input element with pressure relief valve
- Flange valve with hand lever, double-acting with spring return
- Output element

Parameters:

Max. flow: 50 l/min
Max. pressure: 300 bar
Max. return pressure: 35 bar
Temperature range: -30 °C to + 90 °C
Hinweis
zoom circuit diagram TS-2EFF+DFFzoom
Technical Data:
Qty. Presetting
Pressure relief valve
Item No. Price
bar TS-2EFF+DFF 231,57 €
