Single-acting Hydraulic Cylinders

> > > Single-acting Hydraulic Cylinders
Page 2 of 3: back123next
Product Picture Single-acting Hydraulic Cylinder (B)

Single-acting Hydraulic Cylinder (B)

max. operating pressure:

200 bar

max. speed:

0,5 m/s

Temperature range:

-30°C to +90°C
Hinweis

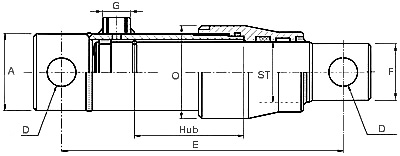

zoom technical drawingzoom
technical drawing
technical dr...
Properties
Properties...
Technical Data:
Qty. Ø-ST
mm		 Stroke
mm		 Ø-D
mm		 E
mm		 Ø-F
mm		 Ø-O
mm		 Ø-A
mm		 G Upward
thrust kN Hinweis		 Item No. Price
45 200 23,0 330 42 70 60 G3/8 31,8 CH-645/2 125,82 €
45 300 23,0 430 42 70 60 G3/8 31,8 CH-645/3 137,16 €
45 400 23,0 530 42 70 60 G3/8 31,8 CH-645/4 146,36 €
45 550 23,0 680 42 70 60 G3/8 31,8 CH-645/5 155,65 €
45 700 23,0 830 42 70 60 G3/8 31,8 CH-645/7 170,97 €
50 200 25,5 360 47 75 65 G3/8 39,3 CH-650/2 142,78 €
50 300 25,5 460 47 75 65 G3/8 39,3 CH-650/3 151,05 €
50 400 25,5 560 47 75 65 G3/8 39,3 CH-650/4 160,45 €
50 550 25,5 710 47 75 65 G3/8 39,3 CH-650/5 177,81 €
50 700 25,5 860 47 75 65 G3/8 39,3 CH-650/7 191,19 €
55 300 25,5 460 52 85 70 G3/8 47,5 CH-655/3 159,92 €
55 550 25,5 710 52 85 70 G3/8 47,5 CH-655/5 209,06 €
55 700 25,5 860 52 85 70 G3/8 47,5 CH-655/7 229,99 €
60 200 25,5 360 57 89 75 G3/8 56,5 CH-660/2 173,11 €
60 300 25,5 460 57 89 75 G3/8 56,5 CH-660/3 187,70 €
60 400 25,5 560 57 89 75 G3/8 56,5 CH-660/4 191,19 €
60 550 25,5 710 57 89 75 G3/8 56,5 CH-660/5 220,27 €
60 700 25,5 860 57 89 75 G3/8 56,5 CH-660/7 243,32 €
70 300 30,5 509 67 100 85 G3/8 77,0 CH-670/3 247,65 €
70 400 30,5 609 67 100 85 G3/8 77,0 CH-670/4 265,31 €
70 500 30,5 709 67 100 85 G3/8 77,0 CH-670/5 286,56 €
Page 2 of 3: back123next
