Single-acting Hydraulic Cylinders, Hydraulic Crutches and Brake Cylinders

> > > Single-acting Hydraulic Cylinders
Page 3 of 3: back123
Product Picture Hydraulic Crutch, single-acting, with spring return

Hydraulic Crutch, single-acting, with spring return

Max. operating pressure:

200 bar
Hinweis

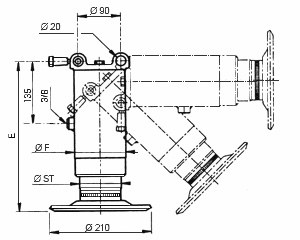

zoom technical drawingzoom
technical drawing
technical dr...
Datasheet characteristics
Datasheet ch...
Technical Data:
Qty. Ø-ST
mm
Stroke
mm
E
mm
Ø-F
mm
G Upward
thrust kN Hinweis
Item No. Price
68 190 390 92 G3/8 70 CH-101/B 259,97 €
88 230 440 108 G3/8 120 CH-100/B 276,91 €
Product Picture Fixture for Hydraulic Crutches (Vertical Jacking Cylinders)

Fixture for Hydraulic Crutches (Vertical Jacking Cylinders)

technical drawing
technical dr...
Technical Data:
Qty. Item No. Price
CH-B 27,24 €
Product Picture Brake Cylinders

Brake Cylinders

operating pressure:

180 bar
Hinweis
zoom technical drawingzoom
technical drawing
technical dr...
Datasheet characteristics
Datasheet ch...
Technical Data:
Qty. Ø-ST
mm
Stroke
mm
Ø-O
mm
G Upward
thrust kN Hinweis
Item No. Price
25 110 45 G3/8 8,8 CH-625F/110 50,54 €
30 110 45 G3/8 12,7 CH-630F/110 51,16 €
35 110 50 G3/8 17,3 CH-635F/110 61,61 €
Product Picture Brake Cylinders with Forkhead

Brake Cylinders with Forkhead

operating pressure:

180 bar
Hinweis
zoom technical drawingzoom
technical drawing
technical dr...
Datasheet characteristics
Datasheet ch...
Technical Data:
Qty. Ø-ST
mm
Stroke
mm
G Upward
thrust kN Hinweis
Item No. Price
25 110 G3/8 8,8 CH-VF25 57,55 €
30 110 G3/8 12,7 CH-VF30 58,17 €
35 110 G3/8 17,3 CH-VF35 68,62 €
Product Picture Brake cylinders with spring return

Brake Cylinders with spring return

Working Pressure:

180 bar
Hinweis
zoom technical drawingzoom
technical drawing
technical dr...
Datasheet characteristics
Datasheet ch...
Technical Data:
Qty. Ø-ST
mm
Stroke
mm
G Upward
thrust kN Hinweis
Item No. Price
25 110 G3/8 8,8 CH-VFP25 83,99 €
30 110 G3/8 12,7 CH-VFP30 84,61 €
35 110 G3/8 17,3 CH-VFP35 95,06 €
Page 3 of 3: back123
