Screw-on Couplings

> > Screw-on Couplings
Product Picture Screw-on coupling Type: HK-S / Female body

Screw-on coupling Type: HK-S / Female body

Male thread for cutting ring -pipe coupling DIN 2353

Material:

steel, galvanised

Sealing:

NBR

Temperature range:

-30° C to +100°C

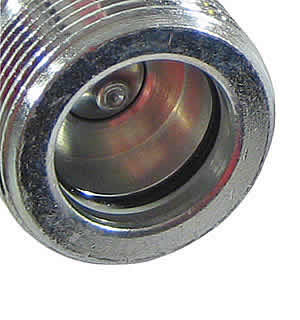

Detailed view with Sealing
Detailed...
Technical Data:
Qty. Size Version
Nominal Pressure
Pipe-Diameter M1 M2 Item No. Price
2 L PN315 8 M14x1,5 Rd28x2 HK-S2M-CEL08 17,25 €
2 L PN315 10 M16x1,5 Rd28x2 HK-S2M-CEL10 17,25 €
3 L PN315 10 M16x1,5 Rd36x2 HK-S3M-CEL10 10,86 €
3 L PN315 12 M18x1,5 Rd36x2 HK-S3M-CEL12 10,86 €
3 L PN315 15 M22x1,5 Rd36x2 HK-S3M-CEL15 10,86 €
4 L PN315 15 M22x1,5 Rd42x2 HK-S4M-CEL15 36,32 €
4 L PN315 18 M26x1,5 Rd42x2 HK-S4M-CEL18 36,32 €
4 S PN400 16 M24x1,5 Rd42x2 HK-S4M-CES16 36,32 €
6 L PN300 18 M26x1,5 Rd48x3 HK-S6M-CEL18 39,42 €
6 L PN160 22 M30x2 Rd48x3 HK-S6M-CEL22 39,42 €
6 S PN300 20 M30x2 Rd48x3 HK-S6M-CES20 39,42 €
6 S PN300 25 M36x2 Rd48x3 HK-S6M-CES25 39,42 €
Product Picture Screw-on coupling Type: HK-S / Male tip

Screw-on coupling Type: HK-S / Male tip

Male thread for cutting ring -pipe coupling DIN 2353

Material:

steel, galvanised

Sealing:

NBR

Temperature range:

-30° C to +100°C

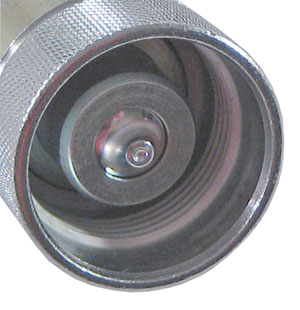

Detailed view with Sealing
Detailed...
Technical Data:
Qty. Size Version
Nominal Pressure
Pipe-Diameter M1 D Item No. Price
2 L PN315 8 M14x1,5 34 HK-S2S-CEL08 17,65 €
2 L PN315 10 M16x1,5 34 HK-S2S-CEL10 17,65 €
3 L PN315 10 M16x1,5 42 HK-S3S-CEL10 11,04 €
3 L PN315 12 M18x1,5 42 HK-S3S-CEL12 11,04 €
3 L PN315 15 M22x1,5 42 HK-S3S-CEL15 11,04 €
4 L PN315 15 M22x1,5 48 HK-S4S-CEL15 42,09 €
4 L PN315 18 M26x1,5 48 HK-S4S-CEL18 42,09 €
4 S PN400 16 M24x1,5 48 HK-S4S-CES16 42,09 €
6 L PN300 18 M26x1,5 55 HK-S6S-CEL18 45,41 €
6 L PN160 22 M30x2 55 HK-S6S-CEL22 45,41 €
6 S PN300 20 M30x2 55 HK-S6S-CES20 45,41 €
6 S PN300 25 M36x2 55 HK-S6S-CES25 45,41 €
Product Picture Screw-on coupling Type: HK-S / Female body

Screw-on coupling Type: HK-S / Female body

Bulkhead connection for cutting ring-pipe coupling DIN 2353

Material:

steel, galvanised

Sealing:

NBR

Temperature range:

-30° C to +100°C
Detailed view with Sealing with Sealing
Detailed...
Technical Data:
Qty. Size Version
Nominal Pressure
Pipe-Diameter M1 M2 Item No. Price
3 L PN315 10 M16x1,5 Rd36x2 HK-S3M-CEL10-S 11,88 €
3 L PN315 12 M18x1,5 Rd36x2 HK-S3M-CEL12-S 11,88 €
3 L PN315 15 M22x1,5 Rd36x2 HK-S3M-CEL15-S 11,88 €
3 S PN400 12 M20x1,5 Rd36x2 HK-S3M-CES12-S 15,52 €
3 S PN400 16 M24x1,5 Rd36x2 HK-S3M-CES16-S 15,52 €
4 L PN315 15 M22x1,5 Rd42x2 HK-S4M-CEL15-S 43,58 €
4 L PN315 18 M26x1,5 Rd42x2 HK-S4M-CEL18-S 43,58 €
6 L PN300 18 M26x1,5 Rd48x2 HK-S6M-CEL18-S 50,92 €
6 L PN160 22 M30x2 Rd48x3 HK-S6M-CEL22-S 50,92 €
6 L PN160 28 M36x2 Rd48x3 HK-S6M-CEL28-S 50,92 €
6 S PN300 20 M30x2 Rd48x3 HK-S6M-CES20-S 50,92 €
6 S PN300 25 M36x2 Rd48x3 HK-S6M-CES25-S 50,92 €
6 S PN250 30 M42x2 Rd48x3 HK-S6M-CES30-S 50,92 €
Product Picture Screw-on coupling Type: HK-S / Male tip

Screw-on coupling Type: HK-S / Male tip

Bulkhead connection for cutting ring-pipe coupling DIN 2353

Material:

steel, galvanised

Sealing:

NBR

Temperature range:

-30° C to +100°C
Detailed view with Sealing
Detailed...
Technical Data:
Qty. Size Version
Nominal Pressure
Pipe-Diameter M1 D Item No. Price
3 L PN315 10 M16x1,5 42 HK-S3S-CEL10-S 12,05 €
3 L PN315 12 M18x1,5 42 HK-S3S-CEL12-S 12,05 €
3 L PN315 15 M22x1,5 42 HK-S3S-CEL15-S 12,05 €
3 S PN400 12 M20x1,5 42 HK-S3S-CES12-S 16,04 €
3 S PN400 16 M24x1,5 42 HK-S3S-CES16-S 16,04 €
4 L PN315 15 M22x1,5 48 HK-S4S-CEL15-S 49,26 €
4 L PN315 18 M26x1,5 48 HK-S4S-CEL18-S 49,26 €
6 L PN300 18 M26x1,5 55 HK-S6S-CEL18-S 60,58 €
6 L PN160 22 M30x2 55 HK-S6S-CEL22-S 60,58 €
6 L PN160 28 M36x2 55 HK-S6S-CEL28-S 60,58 €
6 S PN300 20 M30x2 55 HK-S6S-CES20-S 60,58 €
6 S PN300 25 M36x2 55 HK-S6S-CES25-S 60,58 €
Product Picture Screw-on coupling Type: HK-S / Female body

Screw-on coupling Type: HK-S / Female body

Female thread

Material:

steel, galvanised

Sealing:

NBR

Temperature range:

-30°C to +100°C
Detailed view with Sealing with Sealing
Detailed...
Technical Data:
Qty. Size Nominal Pressure M1 M2 Item No. Price
1 PN450 G 1/4 Rd24x2 HK-S1M-IG-G1/4 13,91 €
2 PN450 G 3/8 Rd28x2 HK-S2M-IG-G3/8 17,25 €
2 PN450 M16x1,5 Rd28x2 HK-S2M-IG-M16x1,5 17,25 €
3 PN400 G 1/2 Rd36x2 HK-S3M-IG-G1/2 14,10 €
3 PN400 M22x1,5 Rd36x2 HK-S3M-IG-M22x1,5 14,10 €
4 PN400 M22x1,5 Rd42x2 HK-S4M-IG-M22x1,5 36,32 €
6 PN300 G 3/4 Rd48x3 HK-S6M-IG-G3/4 39,42 €
6 PN300 G 1 Rd48x3 HK-S6M-IG-G1 39,42 €
Product Picture Screw-on coupling Type: HK-S / Male tip

Screw-on coupling Type: HK-S / Male tip

Female thread

Material:

steel, galvanised

Sealing:

NBR

Temperature range:

-30°C to +100°C
Detailed view with Sealing
Detailed...
Technical Data:
Qty. Size Nominal Pressure M1 D Item No. Price
1 PN450 G 1/4 35 HK-S1S-IG-G1/4 15,24 €
2 PN450 G 3/8 34 HK-S2S-IG-G3/8 17,65 €
2 PN450 M16x1,5 34 HK-S2S-IG-M16x1,5 17,65 €
3 PN400 G 1/2 42 HK-S3S-IG-G1/2 14,60 €
3 PN400 M22x1,5 42 HK-S3S-IG-M22x1,5 14,60 €
4 PN400 M22x1,5 48 HK-S4S-IG-M22x1,5 42,09 €
6 PN300 G 3/4 55 HK-S6S-IG-G3/4 45,41 €
6 PN300 G 1 55 HK-S6S-IG-G1 45,41 €
