Compact Power Units

> > Compact Power Units

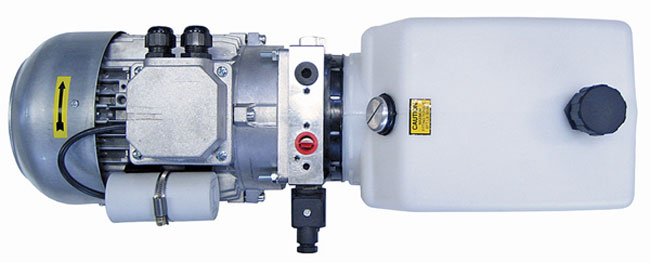

Product Picture Compact Power Units, single-acting

Compact Power Units, single-acting

Features:

- Plastic tank, lucent, filling- and venting filter
- Pressure relief valve and solenoid-lowering valve 230 V
- Connection P = G3/8 female thread

Application:

To lift or lower single acting cylinders, which retract by dead weight (e.g lifting platform)
Function: Motor turned on: cylinder extends
current applied to solenoid-valve: cylinder retracts
Front view.
Front vi...
Back view.
Back vie...
aerial view.
aerial v...
circuit diagram.
circuit ...
Technical Data:
Qty. Tank E-Motor Delivery
l/min		 max. Pressure
bar		 Item No. Price
4,7 l 1,1 kW - AC 230 V Einphasig 2,6 205 HB04,7E1,10Z2,6VD01 876,00 €
4,7 l 1,1 kW - AC 400 V Drehstrom 2,6 205 HB04,7D1,10Z2,6VD01 836,00 €
Product Picture Compact Power Units, double-acting

Compact Power Units, double-acting

Features:

- Plastic tank, lucent, filling- and venting filter
- Pressure relief valve and 4/3-Way Solenoid valve 230 V- NG6
- Connection A + B = G1/4 female thread

Application:

To operate a double acting cylinder
Front view.
Front vi...
Back view.
Back vie...
aerial view.
aerial v...
circuit diagram.
circuit ...
Technical Data:
Qty. Tank E-Motor Delivery
l/min		 max. Pressure
bar		 Item No. Price
4,7 l 1,1 kW - AC 230 V Einphasig 2,6 205 HB04,7E1,10Z2,6VD03 1.116,00 €
4,7 l 1,1 kW - AC 400 V Drehstrom 2,6 205 HB04,7D1,10Z2,6VD03 1.076,00 €

Information:

Our hydraulic compact power unit of the series HB by brand manufacturer SPX | Stone provides an affordable and space saving solution for different hydraulic tasks. It is a compact union consisting of standard components, which makes it versatile for agriculture and industry. Usually single- or double-acting cylinders of lifting platforms, lifting trucks, fork lifts and all kinds of machines wih hydraulic components are supplied by a compact power unit.
