Hand pump

> > Hand pumps
A hand operated hydraulic pump helps you to pro- and retract your hydraulic cylinder manually. It is an ideal option in case of emergency mode. For example opening hydraulic operated locks when your electricity is out and it is urgently required to open/close the lock.
Product Picture Hydraulic hand pump, single-acting

Hydraulic hand pump, single-acting

- reinforced sealing with lip seal and wiper

Hose connection:

G3/8 female thread

Material:

Pump body made of gray cast iron (coated), Piston made of steel, nitrided

Included in delievery:

Hydraulic hand pump, Suction hose, Suction filter, Air filter, 300bar Variation with mit integrated pressure relief valve
Hinweis
zoom Complete Handpump with lever and tank.<br />
					                 <b>Attention:</b> Handlever and Tank are <b>not</b> included in the price <br/>
									and have to odered seperately.zoom
Hinweis

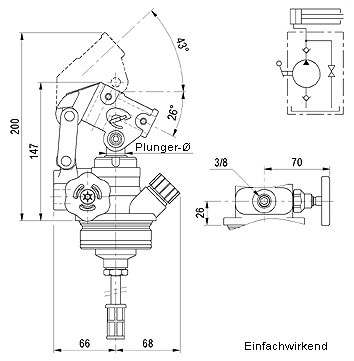

zoom technical drawingzoom
datasheet characteristic
datasheet ch...
Technical Data:
Qty. max. pressure Volume Piston-Ø Item No. Price
300 bar ** 8 cm³/Stroke 12 mm CH-P12/SE-DBV 196,98 €
200 bar 15 cm³/Stroke 16 mm CH-P16/SE 132,78 €
150 bar 20 cm³/Stroke 20 mm CH-P20/SE 129,14 €
300/50 bar ** 5/25 cm³/Stroke 12/30 mm CH-P1230/SE 228,93 €
120 bar * 30 cm³/Stroke 16 mm CH-P25/SDA 175,51 €
* Pump with forward and return stroke(Pulling/pushing movements make the pump convey)
** Pump with ressure relief valve
Product Picture Hydraulic hand pump, double-acting

Hydraulic hand pump, double-acting

- reinforced sealing with lip seal and and wiper

Hose connection:

G3/8 female thread

Material:

Pump body made of gray cast iron (coated), Piston made of steel, nitrided

Included in delievery:

Hydraulic hand pump, Suction hose, Suction filter, Air filter
Hinweis
zoom Complete Handpump with lever and tank.<br />
					                 <b>Attention:</b> Handlever and Tank are <b>not</b> included in the price <br/>
									 and have to odered seperately.zoom
Hinweis
zoom Technical drawingzoom
datasheet characteristic
datasheet ch...
Technical Data:
Qty. max. pressure Volume Piston-Ø Item No. Price
200 bar 15 cm³/stroke 16 mm CH-P16/DE 242,31 €
150 bar 20 cm³/stroke 20 mm CH-P20/DE 238,68 €
150 bar * 30 cm³/stroke 16 mm CH-P25/DDA 269,07 €
* Pump with forward and return stroke(Pulling/pushing movements make the pump convey)
Product Picture Handlever for hydraulic hand pump

Lever

length:

500mm
Hinweis
zoom technical drawingzoom
Technical Data:
Qty. Item No. Price
CH-LEV/PM 14,52 €
Product Picture Tank with drain screw

Tank with drain screw

Hydraulic hand pump is steplessly mountable to the tank(360°)

Material:

drawn, coated steel
Technical Drawing
Technical Dr...
Technical Data:
Qty. Hight Tank-Ø Volume Item No. Price
186 mm 89 mm 1 l* CH-RP/1 67,95 €
149 mm 165 mm 2 l CH-RP/2 67,95 €
189 mm 185 mm 4 l CH-RP/4 70,44 €
229 mm 205 mm 6 l CH-RP/6 92,74 €
249 mm 225 mm 8 l CH-RP/8 104,24 €
* without drain screw
Product Picture Weld-on ring

Weld-on ring

To mount a hydraulic hand pump to any Tank
Hinweis
zoom Technical drawingzoom
Technical Data:
Qty. Item No. Price
CH-RP/ASR 23,79 €
Product Picture Hydraulic oil

Hydraulic oil

DIN51524 part 2

Properties:

good wear and corrosion protection, excellent ageing resistance

Application:

recomended for hand pumps ISO VG 32
Technical Data:
Qty. viscosity content Item No. Price
ISO VG 22 1 Liter HLP22-1LTR 7,25 €
ISO VG 32 1 Liter HLP32-1LTR 6,90 €
ISO VG 46 1 Liter HLP46-1LTR 6,90 €
* Redemption conditions for waste oils are accessible at
Information about waste oils
