Product Picture Hydraulic Top Links Kat. 2

Hydraulic Top Links Kat. 2

For tractors with a power max. of 66 kW (90 HP). The cylinder can be operated comfortably from the cabin by use of a double-acting control valve.

Version:

Female thread M30 x 3, which makes it possible to add another ball joint or arrester hook.
Hinweis
zoom technical drawingzoom
Properties
Properties...
technical data
technical da...
Technical Data:
Qty. Tractor Power A
mm		 B
mm		 Stroke (Z)
mm		 E
mm		 G
mm		 H
mm		 K
mm		 L
mm		 Item No. Price
bis 51 kW (70 HP) 40 60 250 480 70 40 45 280 CH-746/B1 207,54 €
bis 51 kW (70 HP) 40 60 300 530 70 40 45 330 CH-746/C1 207,54 €
bis 66 kW (90 HP) 45 70 250 485 80 39 49 282 CH-747/B1 238,25 €
bis 66 kW (90 HP) 45 70 300 535 80 39 49 332 CH-747/C1 239,79 €
Product Picture Top Link Ball Joints Kat. 2

Top Links Ball Joint Kat. 2

Male thread M30 x 3, to screw in the Top Links Kat. 2.
Easy to fix in place with the supplied locking nut.
Hinweis
zoom technical drawingzoom
Technical Data:
Qty. Item No. Price
CH-KF25 32,36 €
Product Picture Top Links-Arrester Hooks Kat. 2

Top Link-Arrester Hooks Kat. 2

Male thread M30 x 3, to screw in the Top Links Kat. 2.
Easy to fix in place with the supplied locking nut.
Hinweis
zoom technical drawingzoom
Technical Data:
Qty. Item No. Price
CH-OF50 98,59 €

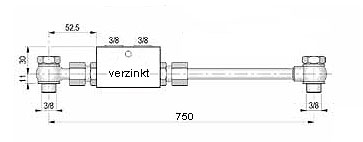

Product Picture Sperrventil für hydraulischen Top Links

non return valve for hydraulic Top Links

Inhibits autonomous relocation of the hydraulic Top Links.

Version:

G3/8 female thread The check valva can be shortened by oneself if required.
Hinweis
zoom technical drawingzoom
Technical Data:
Qty. Item No. Price
CH-ARDP 142,79 €
Product Picture Ball Joint for Top Links, weldable

Ball Joint for Top Links, weldable

Hinweis
zoom technical drawingzoom
Technical Data:
Qty. A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 Item No. Price
9 (Kat. 1) 25 48 44 53 CH-KG19/A 9,45 €
19 (Kat. 1) 34 60 44 62 CH-KG19/B 10,71 €
25,4 (Kat. 2) 30 73 51 72 CH-KG25/A 10,31 €
25,4 (Kat. 2) 50 70 51 80 CH-KG25/B 15,62 €
32,1 (Kat. 3) 50 70 51 80 CH-KG32 17,41 €
Product Picture Top Link Ball for Arrester Hooks

Top Link Ball for Arrester Hooks

Material:

Steel, galvanised yellow
Hinweis
zoom technical drawingzoom
Technical Data:
Qty. A
mm		 B
mm		 Item No. Price
25 (Kat. 2) 50 (Kat. 2) CH-OK25-50 4,52 €
25 (Kat. 2) 60 (Kat. 3) CH-OK25-60 9,13 €
32 (Kat. 3) 60 (Kat. 3) CH-OK32-60 6,47 €
