Product Picture Telescopic cylinders (suspension H)

Telescopic cylinders (suspension H)

max. Pressure:

300 bar

max. Speed:

0,2 m/s

Temperature range:

-30°C to +90°C

Sometimes telescopic cylinders take a couple of days to arrive. You will receive an E-mail after your order which informs you about the exact date of delievery.

Hinweis

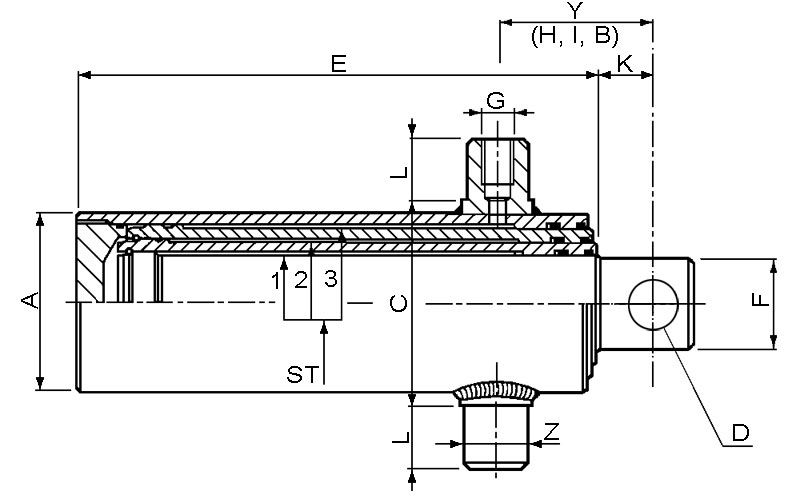

zoom technical drawingzoom
Datensheet characteristics
Datensheet c...
Instructions Telescopic cylinders
Instructions...
Safety Instructions
Safety Instr...
Technical Data:
Qty. KAR Y(H) mm ST1 mm ST2 mm ST3 mm ST4 mm Hub mm Ø-A mm C mm Ø-D mm E mm Ø-F mm K mm L mm Ø-Z mm G mm Upward
thrust kN Hinweis
Item No. Price
00 100 45 61 390 80 98 26 293 42 30 25 25 M16x1,5 58,4 CH-294/H 220,04 €
00 100 45 61 500 80 98 26 348 42 30 25 25 M16x1,5 58,4 CH-295/H 226,03 €
0 107 45 61 620 80 100 26 409 42 30 40 40 G1/2 58,4 CH-296/H 232,49 €
0 107 45 61 820 80 100 26 509 42 30 40 40 G1/2 58,4 CH-298/H 276,09 €
1 107 61 76 595 95 115 31 406 58 30 45 45 G1/2 90,7 CH-201/H 256,93 €
1 107 61 76 795 95 115 26 506 58 30 45 45 G1/2 90,7 CH-202/H 294,66 €
1 107 68 88 950 108 128 36 594 65 40 45 45 G1/2 121,8 CH-203/H 416,65 €*
2 107 88 107 930 128 148 36 589 85 40 45 45 G1/2 179,8 CH-204/H 468,48 €*
1 110 45 61 76 570 95 115 26 293 42 30 45 45 G1/2 90,7 CH-305/H 314,90 €
1 110 45 61 76 910 95 115 26 409 42 30 45 45 G1/2 90,7 CH-306/H 340,29 €
1 110 61 76 91 875 108 128 31 406 58 30 45 45 G1/2 130,1 CH-307/H 350,60 €
1 110 61 76 91 1060 108 128 36 469 58 30 45 45 G1/2 130,1 CH-308/H 387,84 €*
2 110 68 88 107 895 128 148 36 418 65 40 45 45 G1/2 179,8 CH-310/H 429,58 €*
2 110 68 88 107 1160 128 148 36 507 65 40 45 45 G1/2 179,8 CH-311/H 516,54 €*
2 110 68 88 107 1300 128 148 36 553 65 40 45 45 G1/2 179,8 CH-312/H 566,56 €*
3 110 88 107 126 1260 150 170 36 545 85 40 45 45 G1/2 249,4 CH-313/H 692,23 €*
3 110 88 107 126 1125 150 170 36 499 85 40 45 45 G1/2 249,4 CH-314/H 672,90 €*
3 110 88 107 126 1380 150 170 36 584 85 40 45 45 G1/2 249,4 CH-315/H 577,22 €*
3 110 88 107 126 1710 150 170 45 694 85 50 45 45 G1/2 249,4 CH-316/H 642,11 €*
1 113 45 61 76 91 1190 108 128 26 409 42 30 45 45 G1/2 130,1 CH-445/H 479,61 €
2 113 61 76 91 107 1380 128 148 36 464 58 30 45 45 G1/2 179,8 CH-447/H 513,50 €*
3 113 68 88 107 126 1520 150 170 36 502 65 40 45 45 G1/2 249,4 CH-419/H 569,18 €*
3 113 68 88 107 126 1705 150 170 36 548 65 40 45 45 G1/2 249,4 CH-420/H 601,58 €*
3 113 68 88 107 126 1860 150 170 36 587 65 40 45 45 G1/2 249,4 CH-421/H 847,27 €*
3 113 68 88 107 126 2305 150 170 36 697 65 50 45 45 G1/2 249,4 CH-451/H 1.195,43 €*

* Delivery by freight forwarders

Delivery by freight forwarders There is a one-time surcharge for deliveries abroad. For further information and prices, click the symbol.

Product Picture Telescopic cylinders (suspension I)

Telescopic cylinders (suspension I)

max. Pressure:

200 bar

max. Speed:

0,2 m/s

Temperature range:

-30°C to +90°C

Telescopic cylinders take a couple of days till delievery. You will receive an E-mail after your order which tells you about the date of delievery.

Hinweis
zoom technical drawingzoom
Datasheet characteristics
Datasheet ch...
Instructions Telescopic cylinders
Instructions...
Safety Instructions
Safety Instr...
Technical Data:
Qty. KAR Y(I) mm ST1 mm ST2 mm ST3 mm ST4 mm ST5 mm Hub mm Ø-A mm C mm Ø-D mm E mm Ø-F mm K mm L mm Ø-Z mm G mm Upward
thrust kN Hinweis
Item No. Price
1 197 68 88 950 108 128 36 594 65 40 45 45 G1/2 121,8 CH-203/I 379,23 €*
2 197 88 107 930 128 148 36 589 85 40 45 45 G1/2 179,8 CH-204/I 381,20 €*
1 200 61 76 91 875 108 128 31 406 58 30 45 45 G1/2 130,1 CH-307/I 281,54 €
1 200 61 76 91 1060 108 128 36 469 58 30 45 45 G1/2 130,1 CH-308/I 338,42 €*
2 200 68 88 107 895 128 148 36 418 65 40 45 45 G1/2 179,8 CH-310/I 337,69 €*
2 200 68 88 107 1160 128 148 36 507 65 40 45 45 G1/2 179,8 CH-311/I 410,29 €*
2 200 68 88 107 1300 128 148 36 553 65 40 45 45 G1/2 179,8 CH-312/I 428,57 €*
3 200 88 107 126 1260 150 170 36 545 85 40 45 45 G1/2 249,4 CH-313/I 523,62 €*
3 200 88 107 126 1125 150 170 36 499 85 40 45 45 G1/2 249,4 CH-314/I 490,92 €*
3 200 88 107 126 1380 150 170 36 584 85 40 45 45 G1/2 249,4 CH-315/I 566,73 €*
3 200 88 107 126 1710 150 170 45 694 85 50 45 45 G1/2 249,4 CH-316/I 623,07 €*
4 200 107 126 147 1670 178 198 45 699 104 50 50 50 G1/2 339,4 CH-317/I 956,58 €*
1 203 45 61 76 91 1190 108 128 26 409 42 30 45 45 G1/2 130,1 CH-445/I 479,61 €
2 203 61 76 91 107 1380 128 148 36 464 58 30 45 45 G1/2 179,8 CH-447/I 426,76 €*
3 203 68 88 107 126 1520 150 170 36 502 65 40 45 45 G1/2 249,4 CH-419/I 566,86 €*
3 203 68 88 107 126 1705 150 170 36 548 65 40 45 45 G1/2 249,4 CH-420/I 550,86 €*
3 203 68 88 107 126 1860 150 170 36 587 65 40 45 45 G1/2 249,4 CH-421/I 847,27 €*
3 203 68 88 107 126 2305 150 170 36 697 65 50 45 45 G1/2 249,4 CH-451/I 846,18 €*
4 203 88 107 126 147 1470 178 198 45 507 85 50 50 50 G1/2 339,4 CH-422/I 967,39 €*
4 203 88 107 126 147 1810 178 198 45 592 85 50 50 50 G1/2 339,4 CH-423/I 1.218,39 €*
4 203 88 107 126 147 2250 178 198 45 702 85 50 50 50 G1/2 339,4 CH-424/I 1.078,95 €*
5 203 107 126 147 170 2200 204 238 45 702 104 50 50 50 G1/2 454,0 CH-425/I 1.445,99 €*
5 206 88 107 126 147 170 2230 204 238 45 595 85 50 50 50 G1/2 454,0 CH-526/I 1.647,04 €*
5 206 88 107 126 147 170 2780 204 238 45 705 85 50 50 50 G1/2 454,0 CH-527/I 1.704,22 €*
5 206 88 107 126 147 170 2035 204 238 45 556 85 50 50 50 G1/2 454,0 CH-528/I 1.178,49 €*

* Delivery by freight forwarders

Delivery by freight forwarders There is a one-time surcharge for deliveries abroad. For further information and prices, click the symbol.

Product Picture Telescopic cylinders (suspension B)

Telescopic cylinders (suspension B)

max. pressure:

200 bar

max. speed:

0,2 m/s

Temperature range:

-30°C to +90°C

Telescopic cylinders take a couple of days till delievery. You will receive an E-mail after your order which tells you about the date of delievery.

Hinweis
zoom technical drawingzoom
Datasheet characteristics
Datasheet ch...
Instructions Telescopic cylinders
Instructions...
Safety Instructions
Safety Instr...
Technical Data:
Qty. KAR Y(B) mm ST1 mm ST2 mm ST3 mm ST4 mm Hub mm Ø-A mm C mm Ø-D mm E mm Ø-F mm K mm L mm Ø-Z mm G mm Upward
thrust kN Hinweis
Item No. Price
00 283 45 61 390 80 98 26 293 42 30 25 25 M16x1,5 58,4 CH-294/B 220,04 €
00 338 45 61 500 80 98 26 348 42 30 25 25 M16x1,5 58,4 CH-295/B 226,03 €
0 399 45 61 620 80 100 26 409 42 30 40 40 G1/2 58,4 CH-296/B 232,49 €
0 499 45 61 820 80 100 26 509 42 30 40 40 G1/2 58,4 CH-298/B 276,09 €
1 396 61 76 595 95 115 31 406 58 30 45 45 G1/2 90,7 CH-201/B 256,93 €
1 496 61 76 795 95 115 26 506 58 30 45 45 G1/2 90,7 CH-202/B 244,87 €
1 589 68 88 950 108 128 36 594 65 40 45 45 G1/2 121,8 CH-203/B 379,23 €*
2 584 88 107 930 128 148 36 589 85 40 45 45 G1/2 179,8 CH-204/B 503,92 €*
1 283 45 61 76 570 95 115 26 293 42 30 45 45 G1/2 90,7 CH-305/B 314,90 €
1 399 45 61 76 910 95 115 26 409 42 30 45 45 G1/2 90,7 CH-306/B 340,29 €
1 391 61 76 91 875 108 128 31 406 58 30 45 45 G1/2 130,1 CH-307/B 329,53 €
1 454 61 76 91 1060 108 128 36 469 58 30 45 45 G1/2 130,1 CH-308/B 338,42 €*
2 413 68 88 107 895 128 148 36 418 65 40 45 45 G1/2 179,8 CH-310/B 462,07 €*
2 502 68 88 107 1160 128 148 36 507 65 40 45 45 G1/2 179,8 CH-311/B 516,54 €*
2 548 68 88 107 1300 128 148 36 553 65 40 45 45 G1/2 179,8 CH-312/B 402,25 €*
3 540 88 107 126 1260 150 170 36 545 85 40 45 45 G1/2 249,4 CH-313/B 692,23 €*
3 494 88 107 126 1125 150 170 36 499 85 40 45 45 G1/2 249,4 CH-314/B 506,93 €*
3 579 88 107 126 1380 150 170 36 584 85 40 45 45 G1/2 249,4 CH-315/B 547,58 €*
1 394 45 61 76 91 1190 108 128 26 409 42 30 45 45 G1/2 130,1 CH-445/B 406,02 €
2 449 61 76 91 107 1380 128 148 36 464 58 30 45 45 G1/2 179,8 CH-447/B 513,50 €*
3 497 68 88 107 126 1520 150 170 36 502 65 40 45 45 G1/2 249,4 CH-419/B 711,36 €*
3 543 68 88 107 126 1705 150 170 36 548 65 40 45 45 G1/2 249,4 CH-420/B 550,86 €*
3 582 68 88 107 126 1860 150 170 36 587 65 40 45 45 G1/2 249,4 CH-421/B 744,07 €*
4 494 88 107 126 147 1470 178 198 45 507 85 50 50 50 G1/2 339,4 CH-422/B 1.023,35 €*

* Delivery by freight forwarders

Delivery by freight forwarders There is a one-time surcharge for deliveries abroad. For further information and prices, click the symbol.

Page 1 of 3: 123next
