Double-acting Hydraulic Cylinders

> > > Double-acting Hydraulic Cylinders
Page 1 of 3: 123next
Product Picture Double-acting Hydraulic Cylinder

Double-acting Hydraulic Cylinder

max. operating pressure:

200 bar

max. speed:

0,5 m/s

Temperature range:

-30°C to +90°C

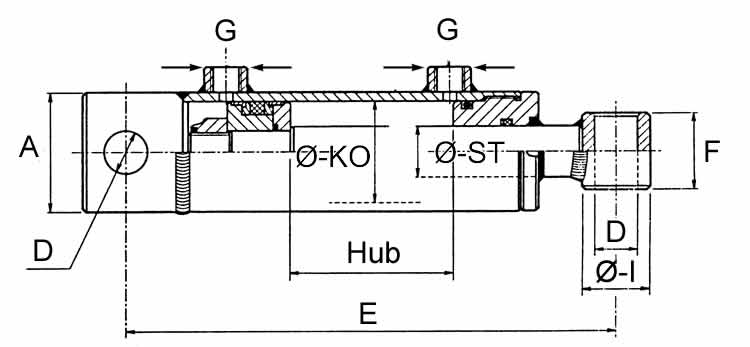

Technical drawing
Technica...

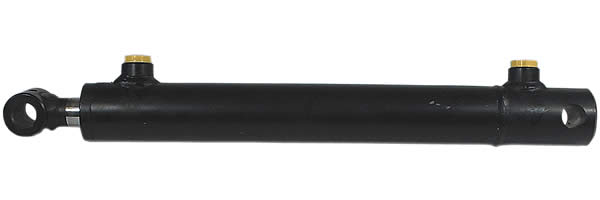

Double-acting Hydraulic Cylinder
Double-a...
Bushes - Double-acting Hydraulic Cylinder
Bushes -...

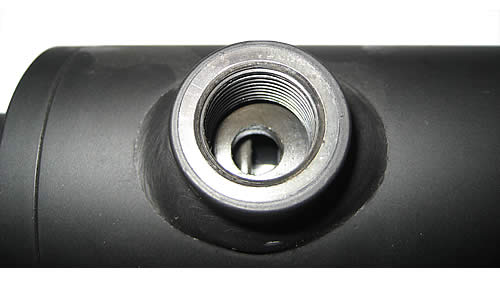

Connection - Double-acting Hydraulic Cylinder
Connecti...
Datasheet characteristics
Datasheet ch...

Description:

A double-acting hydraulic cylinder (Hydraulic stamp) has two piston surfaces, where hydraulic fluid can be applied bilaterally . It enables the cylinder to actively pro- and retract. The affected surface is smaller during retraction because the piston rod is attached to this surface. Thereby the cylinder has higher speed during retraction and a lower force (traction) than in protraction.

The following table shows parameters and dimensions of double-acting cylinders. Piston diameter Ø-KO, Rod diameter Ø-ST. The remaining measurements are explained within the technical drawing.

Technical Data:
Qty. Ø-KO mm Ø-ST mm Stroke mm Ø-D mm E mm F mm Ø-A mm Ø-I mm G Upward
thrust kN Hinweis
Tractive
effort kN Hinweis
Item No. Price
32 20 50 16,2 205 35 40 30 G1/4 16,1 9,8 CH-700/05 96,91 €
32 20 100 16,2 255 35 40 30 G1/4 16,1 9,8 CH-700/10 100,66 €
32 20 150 16,2 305 35 40 30 G1/4 16,1 9,8 CH-700/15 103,74 €
32 20 200 16,2 355 35 40 30 G1/4 16,1 9,8 CH-700/20 108,31 €
32 20 300 16,2 455 35 40 30 G1/4 16,1 9,8 CH-700/30 113,00 €
32 20 400 16,2 555 35 40 30 G1/4 16,1 9,8 CH-700/40 120,23 €
32 20 500 16,2 655 35 40 30 G1/4 16,1 9,8 CH-700/50 127,47 €
32 20 600 16,2 755 35 40 30 G1/4 16,1 9,8 CH-700/60 134,70 €
32 20 700 16,2 855 35 40 30 G1/4 16,1 9,8 CH-700/70 144,69 €
40 25 100 20,25 270 40 50 35 G3/8 25,1 15,3 CH-701/1 105,21 €
40 25 200 20,25 370 40 50 35 G3/8 25,1 15,3 CH-701/2 113,00 €
40 25 300 20,25 470 40 50 35 G3/8 25,1 15,3 CH-701/3 119,16 €
40 25 400 20,25 570 40 50 35 G3/8 25,1 15,3 CH-701/4 129,76 €
40 25 500 20,25 670 40 50 35 G3/8 25,1 15,3 CH-701/5 141,41 €
40 25 600 20,25 770 40 50 35 G3/8 25,1 15,3 CH-701/6 154,34 €
40 25 700 20,25 870 40 50 35 G3/8 25,1 15,3 CH-701/7 161,58 €
40 25 800 20,25 970 40 50 35 G3/8 25,1 15,3 CH-701/8 171,21 €
40 25 1000 20,25 1170 40 50 35 G3/8 25,1 15,3 CH-701/10 192,92 €
50 30 100 25,25 300 45 60 40 G3/8 39,3 25,1 CH-702/1 134,59 €
50 30 150 25,25 350 45 60 40 G3/8 39,3 25,1 CH-702/150 136,02 €
50 30 200 25,25 400 45 60 40 G3/8 39,3 25,1 CH-702/2 144,37 €
50 30 300 25,25 500 45 60 40 G3/8 39,3 25,1 CH-702/3 153,75 €
50 30 400 25,25 600 45 60 40 G3/8 39,3 25,1 CH-702/4 164,46 €
50 30 500 25,25 700 45 60 40 G3/8 39,3 25,1 CH-702/5 172,10 €
50 30 600 25,25 800 45 60 40 G3/8 39,3 25,1 CH-702/6 183,76 €
50 30 700 25,25 900 45 60 40 G3/8 39,3 25,1 CH-702/7 195,97 €
50 30 800 25,25 1000 45 60 40 G3/8 39,3 25,1 CH-702/8 204,99 €
50 30 900 25,25 1100 45 60 40 G3/8 39,3 25,1 CH-702/9 217,05 €
50 30 1000 25,25 1200 45 60 40 G3/8 39,3 25,1 CH-702/10 231,52 €
60 30 100 25,25 300 45 70 40 G3/8 56,5 42,4 CH-703/1 147,45 €
60 30 200 25,25 400 45 70 40 G3/8 56,5 42,4 CH-703/2 156,83 €
60 30 300 25,25 500 45 70 40 G3/8 56,5 42,4 CH-703/3 166,08 €
60 30 400 25,25 600 45 70 40 G3/8 56,5 42,4 CH-703/4 175,19 €
60 30 500 25,25 700 45 70 40 G3/8 56,5 42,4 CH-703/5 185,11 €
60 30 600 25,25 800 45 70 40 G3/8 56,5 42,4 CH-703/6 195,97 €
60 30 700 25,25 900 45 70 40 G3/8 56,5 42,4 CH-703/7 205,22 €
70 40 200 30,25 410 55 80 50 G3/8 77 51,8 CH-704/2 195,97 €
70 40 300 30,25 510 55 80 50 G3/8 77 51,8 CH-704/3 206,70 €
70 40 400 30,25 610 55 80 50 G3/8 77 51,8 CH-704/4 218,35 €
70 40 500 30,25 710 55 80 50 G3/8 77 51,8 CH-704/5 229,07 €
70 40 600 30,25 810 55 80 50 G3/8 77 51,8 CH-704/6 241,28 €
70 40 700 30,25 910 55 80 50 G3/8 77 51,8 CH-704/7 253,74 €
70 40 800 30,25 1010 55 80 50 G3/8 77 51,8 CH-704/8 277,33 €
70 40 1000 30,25 1210 55 80 50 G3/8 77 51,8 CH-704/10 305,12 €
80 40 200 30,25 410 55 90 50 G3/8 100,5 75,4 CH-705/2 227,48 €
80 40 300 30,25 510 55 90 50 G3/8 100,5 75,4 CH-705/3 235,09 €
80 40 400 30,25 610 55 90 50 G3/8 100,5 75,4 CH-705/4 245,96 €
80 40 500 30,25 710 55 90 50 G3/8 100,5 75,4 CH-705/5 256,82 €
80 40 600 30,25 810 55 90 50 G3/8 100,5 75,4 CH-705/6 269,01 €
80 40 700 30,25 910 55 90 50 G3/8 100,5 75,4 CH-705/7 281,36 €
100 50 300 30,25 525 70 115 65 G1/2 157,1 117,8 CH-706/3 321,30 €
100 50 400 30,25 625 70 115 65 G1/2 157,1 117,8 CH-706/4 343,54 €
100 50 500 30,25 725 70 115 65 G1/2 157,1 117,8 CH-706/5 358,96 €*
100 50 700 30,25 925 70 115 65 G1/2 157,1 117,8 CH-706/7 407,35 €*
100 50 900 30,25 1125 70 115 65 G1/2 157,1 117,8 CH-706/9 438,84 €*
120 70 500 40,5 770 80 140 80 G1/2 226,2 149,2 CH-707/5 597,01 €*
120 70 1000 40,5 1270 80 140 80 G1/2 226,2 149,2 CH-707/10 734,00 €*

* Delivery by freight forwarders

Delivery by freight forwarders There is a one-time surcharge for deliveries abroad. For further information and prices, click the symbol.
