Wood splitter double-acting hydraulic cylinders

Product Picture

zoom

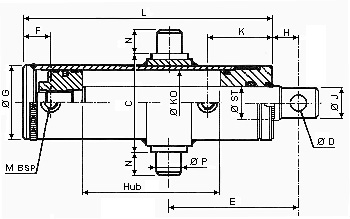

technical drawing

detail drawi...

Datasheet ch...

Technical Data:

Qty.	Ø-KO mm	Ø-ST mm	Stroke mm	C mm	Ø-D mm	E mm	G mm	H mm	J mm	L mm	M	N mm	P mm	Upward thrust kN	Tractive effort kN	Item No.	Price
	90	45	700	135	20,5	185	100	35	45	851	3/8	45	45	127,2	95,4	CH-74590/700T	492,11 €
	90	45	1000	135	20,5	185	100	35	45	1151	3/8	45	45	127,2	95,4	CH-74590/1000T	572,37 €*
	100	50	1000	151	25,5	280	115	44	48	1145	1/2	50	50	157,1	117,8	CH-706/1000T	741,42 €*
	100	60	1000	151	25,5	280	115	44	58	1145	1/2	50	50	157,1	100,5	CH-760100/1000T	953,71 €*
	100	70	1000	151	25,5	280	115	44	68	1145	1/2	50	50	157,1	80,1	CH-770100/1000T	1.026,76 €*

* Delivery by freight forwarders

There is a one-time surcharge for deliveries abroad. For further information and prices, click the symbol.

Product Picture

zoom

technical drawing

technical da...

Technical Data:

Qty.

Ø-KO mm

Ø-ST mm

Stroke mm

C mm

E mm

G mm

H mm

L mm

M

N mm

P mm

Upward thrust kN

Tractive effort kN

Item No.

Price

120

70

1000

191

280

140

55

1200

1/2

50

50

226,2

149,2

CH-707/1000T

1.273,32 €*

* Delivery by freight forwarders

There is a one-time surcharge for deliveries abroad. For further information and prices, click the symbol.
