Product Picture Gear pump (italian „Plessey“-Flange), size 2

Gear pump (italian „Plessey“-Flange), installation size 2

Oil connection via 4-Hole-Flange, Type WDS und F.

Valid Pressure inside the suction hose:

min. 0,7 bar (absolute), max. 3 bar The drive should be done via a elastic coupling. There must not be radial or axial forces transfered to the motor shaft.
Front view - Technical drawing
Front vi...

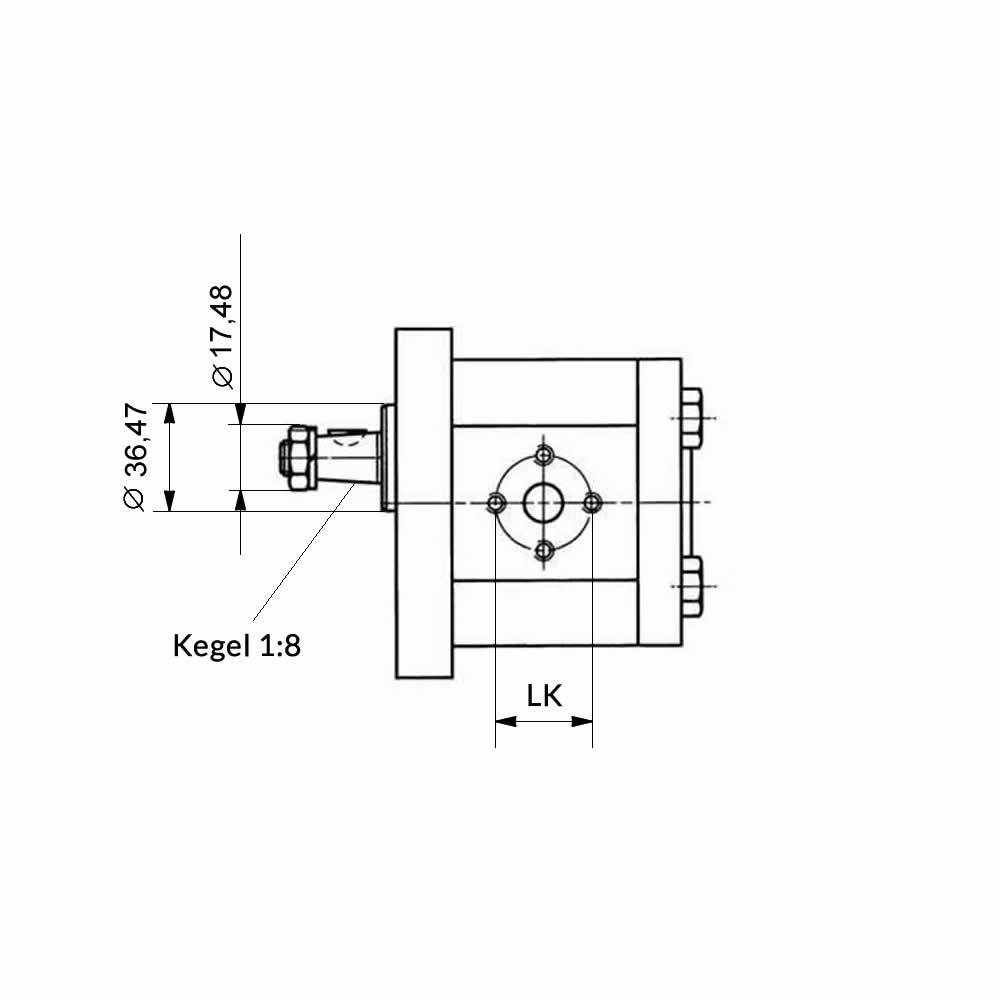

Side view - Technical drawing
Side vie...
Technical Data:
Qty. Rotation direction Hinweis Displacement vol. cm3/U Speed maximal R/min Pressure cont. maximal bar Delievery max. l/min Pressure LK mm Suction LK mm Item No. Price
4 3500 250 13,2 30 – M6 30 – M6
PU-ITA04R
236,93 €
6 3500 250 19,8 30 – M6 30 – M6
PU-ITA06R
236,93 €
8 3500 250 26,4 30 – M6 30 – M6
PU-ITA08R
236,93 €
11 3000 250 31,1 30 – M6 30 – M6
PU-ITA11R
236,93 €
14 2500 250 33,0 30 – M6 40 – M8
PU-ITA14R
255,70 €
17 2000 250 32,1 30 – M6 40 – M8
PU-ITA17R
255,70 €
19 2000 210 35,8 30 – M6 40 – M8
PU-ITA19R
291,97 €
22 2000 180 41,5 30 – M6 40 – M8
PU-ITA22R
291,97 €
25 2000 160 47,2 40 – M8 40 – M8
PU-ITA25R
291,97 €
Product Picture Bellhausing

Bellhausing

- to connect gear pumps and electric motors

Fit-in Diameter Pump sided:

36,47 mm

Hole Pattern:

71,4 x 96 mm
Detail drawing
Detail drawi...
Technical Data:
Qty. Compatible for Motors
1500 R/min 		Flange-Ø
F mm		 hole circle
LK mm		 Item No. Price
0,25 – 0,37 kW 160 130 KT-PK160/04/03 51,18 €
0,55 – 1,5 kW 200 165 KT-PL200/02/03 55,01 €
2,2 – 4,0 kW 250 215 KT-PL250/01/03 91,40 €
5,5 – 7,5 kW 300 265 KT-PL300/01/02 123,68 €
11,0 – 15,0 kW 350 300 KT-PK350/01/05 184,67 €
Product Picture Seals

Seals

- used between Bellhausing and tank cover

Material:

NBR
Technical Data:
Qty. Compatible for Motors
1500 R/min 		Flange-Ø
F mm		 Hole circle
LK mm		 Item No. Price
0,25 – 0,37 kW 160 130 KT-DP160 5,53 €
0,55 – 1,5 kW 200 165 KT-DP200 2,74 €
2,2 – 4,0 kW 250 215 KT-DP250 4,01 €
5,5 – 7,5 kW 300 265 KT-DP300 4,71 €
11,0 – 15,0 kW 350 300 KT-DP350 15,41 €
Product Picture Rotex Coupling

Rotex Coupling

- To connect pump shaft and motor shaft - Dampens oscillations - Pumpsided with tapered bore Ø 17,46 mm – 1:8 - 3-piece coupling
Detail drawing
Detail drawi...
Technical Data:
Qty. Compatible for motors
1500 R/min 		Bore at the
hub in mm		 Item No. Price
0,25 – 0,37 kW 14 KT-R24/28.14-N/2A-ALU 44,14 €
0,55 – 0,75 kW 19 KT-R24/28.19-N/2A-ALU 43,77 €
1,1 – 1,5 kW 24 KT-R24/28.24-N/2A-ALU 37,33 €
2,2 – 4,0 kW 28 KT-R24/28.28-N/2A-ALU 48,21 €
5,5 – 7,5 kW 38 KT-R28/38.38-N/2A-ALU 47,31 €
11,0 – 15,0 kW 42 KT-R38/45.42-N/2A-ST 143,28 €
Product Picture Outrigger bearing

Outrigger bearing (pump support) for gear pumps

An outrigger bearing is required to access the transverse forces when the drive of the pumps is direct via v-belt, chain or gear wheel! It gets connected direktly to the pump, the drive happens via a geared coupling sleeve.

Output shaft:

kegelig Ø 17,46 – 1/8

Centring flange:

Ø 36,47

Lubrication:

lubricating grease DIN 51502

Included in delievery:

collar bearing, geared coupling sleeve, flange seals
Technical Data:
Qty. Item No. Price
PU-ITA-Vorsatzlager 211,46 €
