Industrial valves (CETOP5) Nominal size 10

> > > Industrial nominal size 10
Page 1 of 3: 123next
Product Picture 4/2-Way valve (industrial valve)

4/2-Way valve, directly operated, Nominal Size 10 (Symbol H)

A directly operated 4/2-Way valve

Parameters

Max. Pressure for connections P-A-B: 315 bar.
Max. Pressure for connection T: 210 bar.
Max. flow: 100 l/min.

Included in Delievery

Valve, Solenoid, Plug to solenoid
A Mounting Plate is required to run it.
Hinweis
zoom Schaltplan IV-10-4/2-H.zoom
technical data
technical da...
Technical Data:
Qty. Voltage Hinweis Item No. Price
12V DC IV-10-4/2-H-12V 299,41 €
24V DC IV-10-4/2-H-24V 299,41 €
230V AC IV-10-4/2-H-230V 311,16 €
Product Picture 4/2-Way valve (industrial valve)

4/2-Way valve, directly operated, Nominal Size 10 (Symbol D)

A directly operated 4/2-Way valve.

Parameters

Max. Pressure for connections P-A-B: 315 bar.
Max. Pressure for connection T: 210 bar.
Max. flow: 100 l/min.

Included in Delievery

Valve, Solenoid, Plug to solenoid
A Mounting Plate is required to run it.
Hinweis
zoom Schaltplan IV-10-4/2-D.zoom
technical data
technical da...
Technical Data:
Qty. Voltage Hinweis Item No. Price
12V DC IV-10-4/2-D-12V 299,41 €
24V DC IV-10-4/2-D-24V 299,41 €
230V AC IV-10-4/2-D-230V 311,16 €
Product Picture 4/3-Way valve (industrial valve)

4/3-Way valve, directly operated, Nominal Size 10 (Symbol J)

A directly operated 4/3-Way valve.

Parameters

Max. Pressure for connections P-A-B: 315 bar.
Max. Pressure for connection T: 210 bar.
Max. flow: 100 l/min.

Included in Delievery

Valve, Solenoid, Plug to solenoid
A Mounting Plate is required to run it.
Hinweis
zoom Schaltplan IV-10-4/3-J.zoom
technical data
technical da...
Technical Data:
Qty. Voltage Hinweis Item No. Price
12V DC IV-10-4/3-J-12V 350,08 €
24V DC IV-10-4/3-J-24V 350,08 €
230V AC IV-10-4/3-J-230V 361,81 €
Product Picture 4/3-Way valve (industrial valve)

4/3-Way valve, directly operated, Nominal Size 10 (Symbol G)

A directly operated 4/3-Way valve.

Parameters

Max. Pressure for connections P-A-B: 315 bar.
Max. Pressure for connection T: 210 bar.
Max. flow: 100 l/min.

Included in Delievery

Valve, Solenoid, Plug to solenoid
A Mounting Plate is required to run it.
Hinweis
zoom Schaltplan IV-10-4/3-G.zoom
technical data
technical da...
Technical Data:
Qty. Voltage Hinweis Item No. Price
12V DC IV-10-4/3-G-12V 350,08 €
24V DC IV-10-4/3-G-24V 350,08 €
230V AC IV-10-4/3-G-230V 361,81 €
Product Picture 4/3-Way valve (industrial valve)

4/3-Way valve, directly operated, Nominal Size 10 (Symbol E)

A directly operated 4/3-Way valve.

Parameters

Max. Pressure for connections P-A-B: 315 bar.
Max. Pressure for connection T: 210 bar.
Max. flow: 100 l/min.

Included in Delievery

Valve, Solenoid, Plug to solenoid
A Mounting Plate is required to run it.
Hinweis

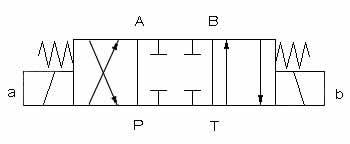

zoom Schaltplan IV-10-4/3-E.zoom
technical data
technical da...
Technical Data:
Qty. Voltage Hinweis Item No. Price
12V DC IV-10-4/3-E-12V 350,08 €
24V DC IV-10-4/3-E-24V 350,08 €
230V AC IV-10-4/3-E-230V 361,81 €
Product Picture 4/3-Way valve (industrial valve)

4/3-Way valve directly operated, Nominal Size 10 (Symbol H)

A directly operated 4/3-Way valve.

Parameters

Max. Pressure for connections P-A-B: 315 bar.
Max. Pressure for connection T: 210 bar.
Max. flow: 100 l/min.

Included in Delievery

Valve, Solenoid, Plug to solenoid
A Mounting Plate is required to run it.
Hinweis

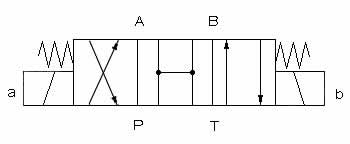

zoom Schaltplan IV-10-4/3-H.zoom
technical data
technical da...
Technical Data:
Qty. Voltage Hinweis Item No. Price
12V DC IV-10-4/3-H-12V 350,08 €
24V DC IV-10-4/3-H-24V 350,08 €
230V AC IV-10-4/3-H-230V 361,81 €
Product Picture Replacement solenoid

Replacement solenoid

It is compatible with industrial valves Nominal Size 10. The 205V DC coil gets used with an upstream reticifier for the application with 230V AC.
Technical Data:
Qty. Voltage Item No. Price
12V DC IV-10-MS012 67,40 €
24V DC IV-10-MS024 67,40 €
205V DC IV-10-MS205 67,40 €
Page 1 of 3: 123next
